Components Hunting at Jalan Pasar

Here is our list of components and material for making project : -

3 - RESISTOR 10KΩ (3 OFF)

2 - RESISTOR 1MΩ (2 0FF)

1 - RESISTOR 100kΩ

1 - VARIABLE RESISTOR VR1 47K MINITURE CARBON PRESET, HORIZONTAL

1 - CAPACITOR 22n POLYESTER FILM

2 - CAPACITOR 10n POLYESTER FILM

1 - CAPACITOR 1n POLYESTER FILM

1 - CAPACITOR 47n POLYESTER FILM

1 - CAPACITOR 100 POLYESTER FILM

1 - CAPACITOR 47µ RADIAL ELECT, 35V

2 - DIODE 1N4148 SILICON

2 - TRANSISTOR VN10KM, MOSFET N-CHANNEL (2 OFF)

1 - IC1 TL071CP, OP. AMPLIFIER, BI-F.E.T. INPUTS

1 - IC2 555 TIMER

1 - ELECTRET MICROPHONE INSERT

1 - 12V 340Ma FILAMENT LAMP

1 - Strip board

1 - 1mm terminal pins (5 off)

2 - 8 pin d.i.l. i.c. socket (2 off)

1 - Lamp socket (MBC or to lift LP1)
1 - 9V Buzzer

1 - Connector for D.C. supply unit

My partner and I went down to Jalan Pasar, the famous place where several of electrics and electronics shop located. Most of BMI student buy their components here.

We go to one particular shop that my friend had suggested, Caltrus Sdn. Bhd.

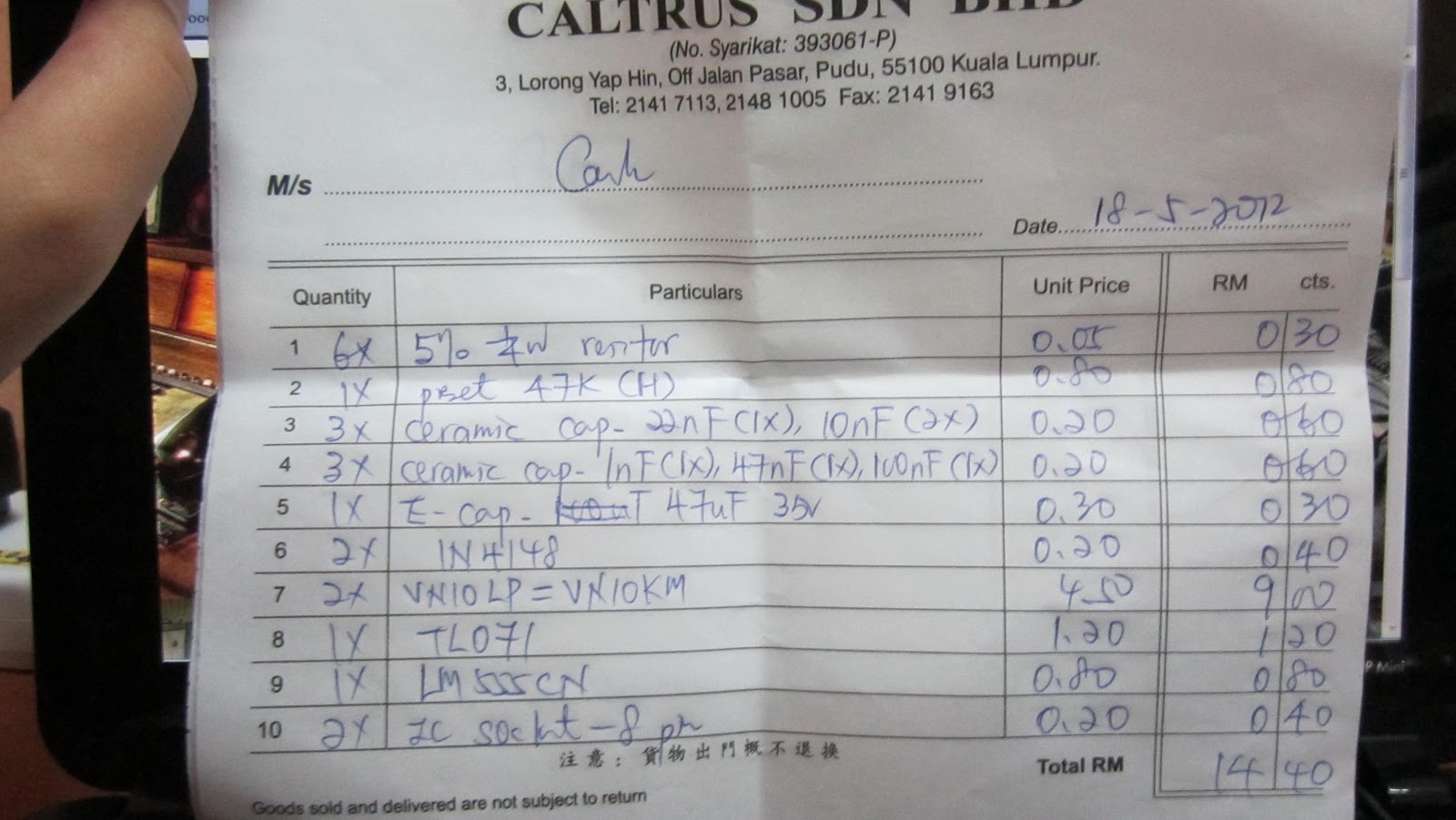

As you can see in the pictures above, we manage to buy all the components for making our project. We bought three set of full-components for backup in case short-circuit happens or components ruined..

Read More

Project Planning

(Click to enlarge the picture)

This is our project planning. Project planning will help us to do work systematically and finish the task in designated period. Late Sir Azman has helped us in making this project planing last year.

Sir Azman (aslo known as Sir MANG) or his full name, Nor Azman Bin Abdul Ghani is our former Engineering Design lecturer on semester 4.

On Engineering Design class, he taught us about the difference between Engineering Design and Final Year Project. Basically, engineering design is not much difference as the final year project, it is actually a preparation for all students currently taking final year project for semester 5.

Below are some of the things we have done while taking ED subjects : -

1. Project Presentation
2. Logbook (Consist of 14 projects)
3. Report Proposal
4. PCB Etching

Sadly, He passed away on July 7th, 2012.



Segala jasa dan ilmu dari mu amat kami hargai, semoga arwah Sir Azman tergolong dalam golongan orang-orang yang beriman. Al-Fatihah. :)
